In production

10-inch rack shelf (1U)

1 Shelf: 1.5 mm galvanized sheet steel.
2 Plate: 3D-printed in PETG ESD.
3 Post: eccentric. Rotating it before clamping fine-tunes its position across the slot, on top of sliding freely along it. Locked from underneath with a screw.
4 Standoff: a nylon snap-fit standoff pressed into the board. Pull it out and unscrew it from the post to expose the M3 heat-set insert underneath for a permanent, screw-mounted option.

249 EURNet price. Reverse-charge VAT for EU businesses.

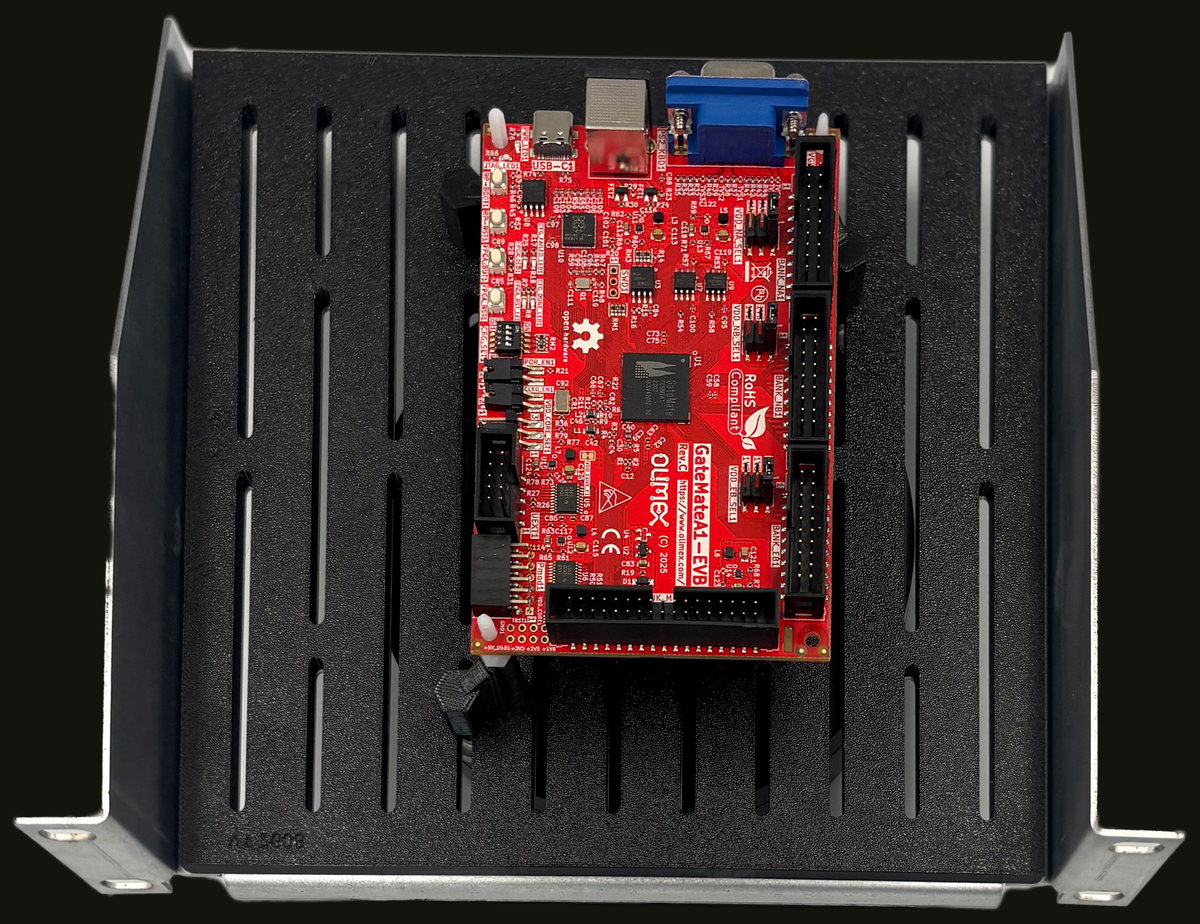

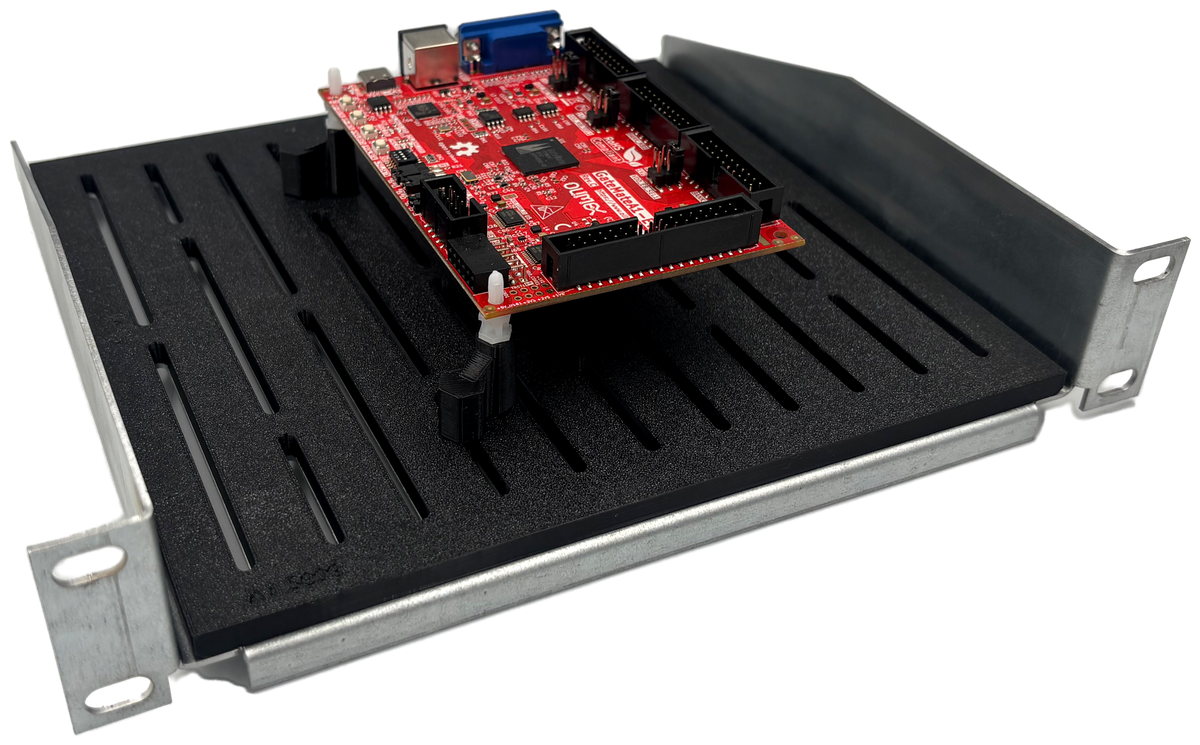

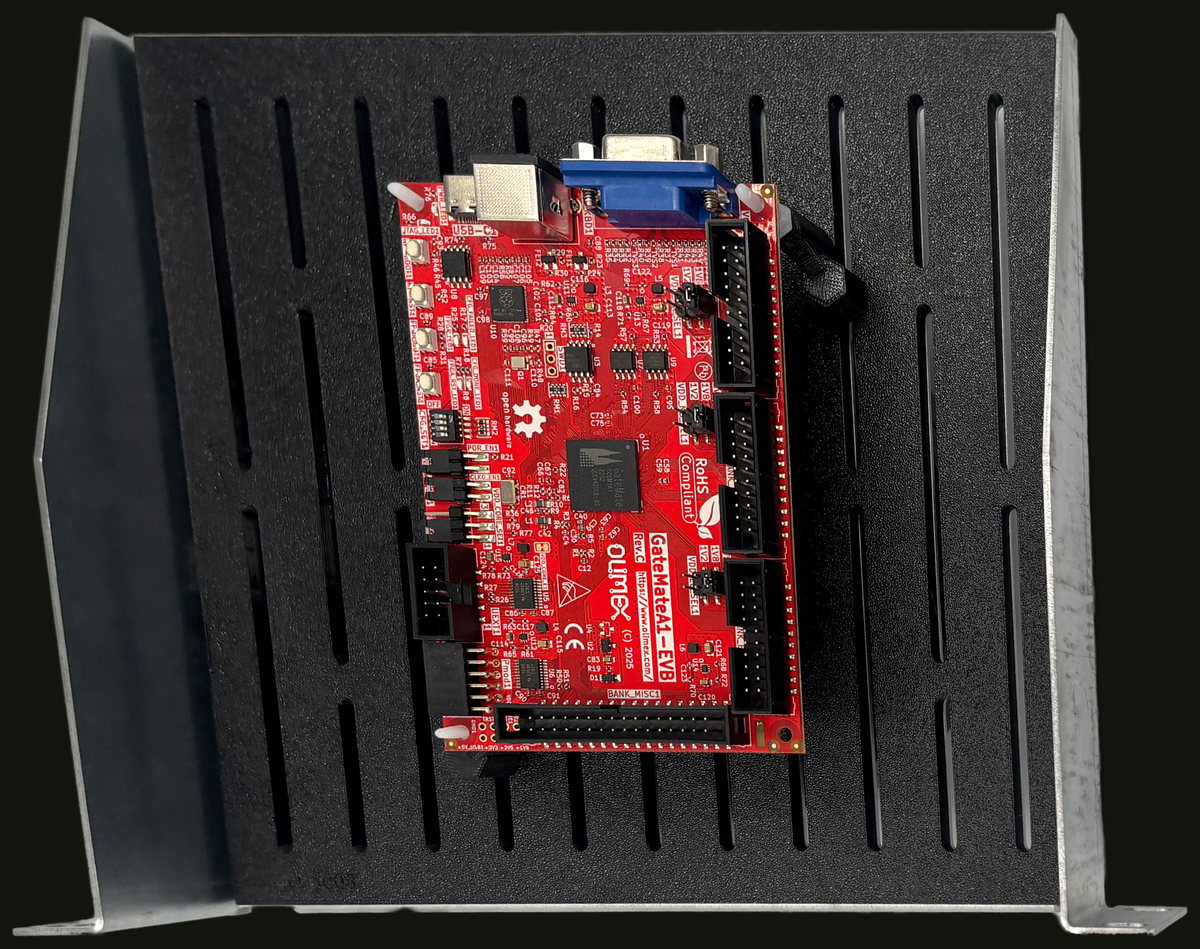

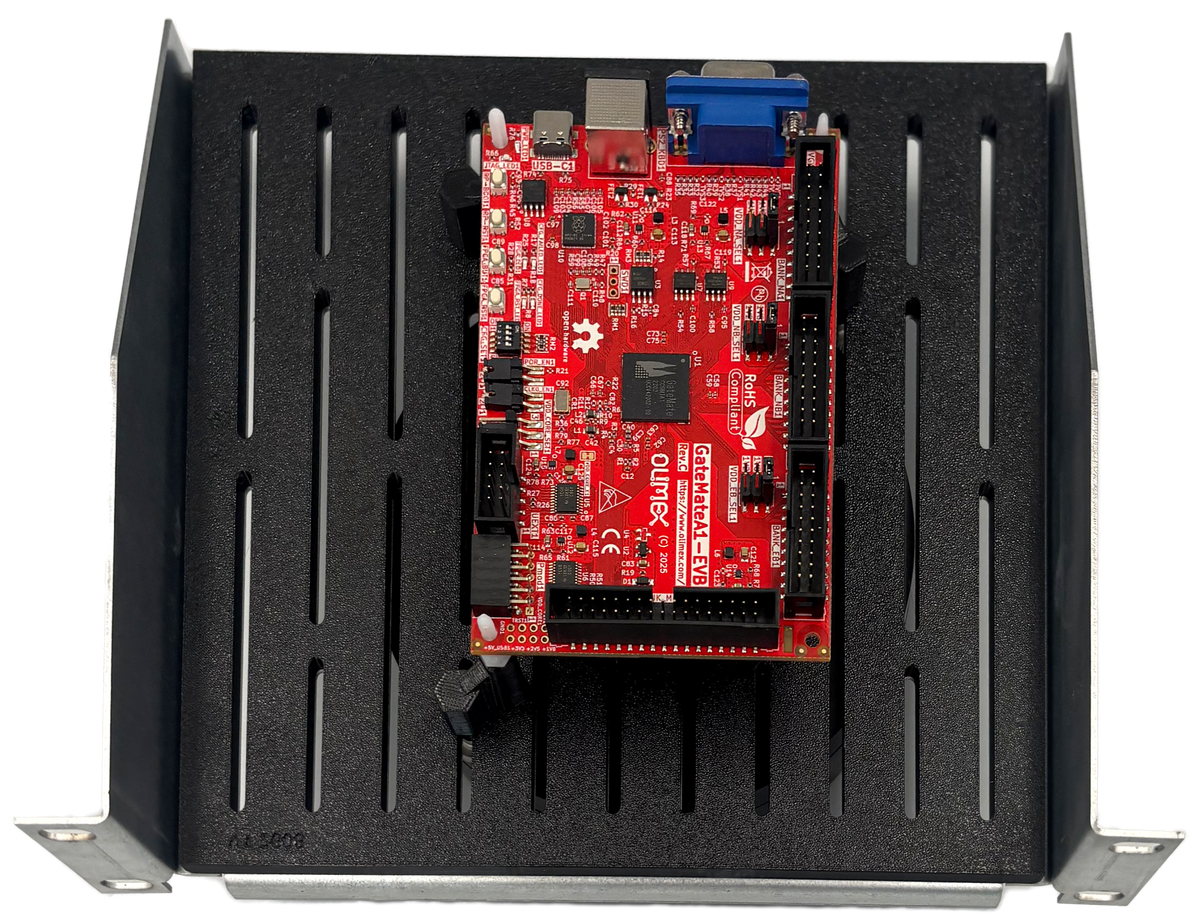

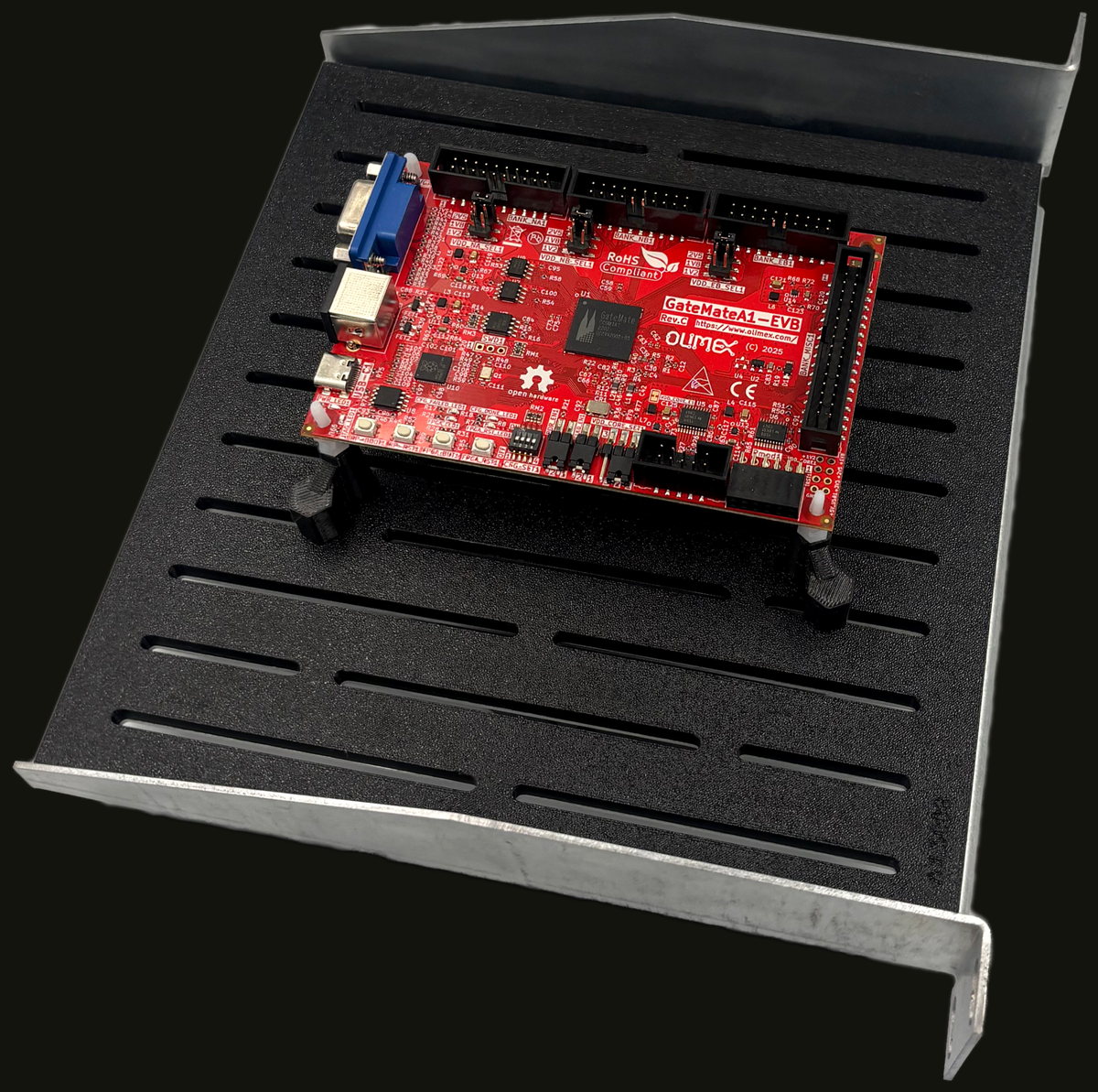

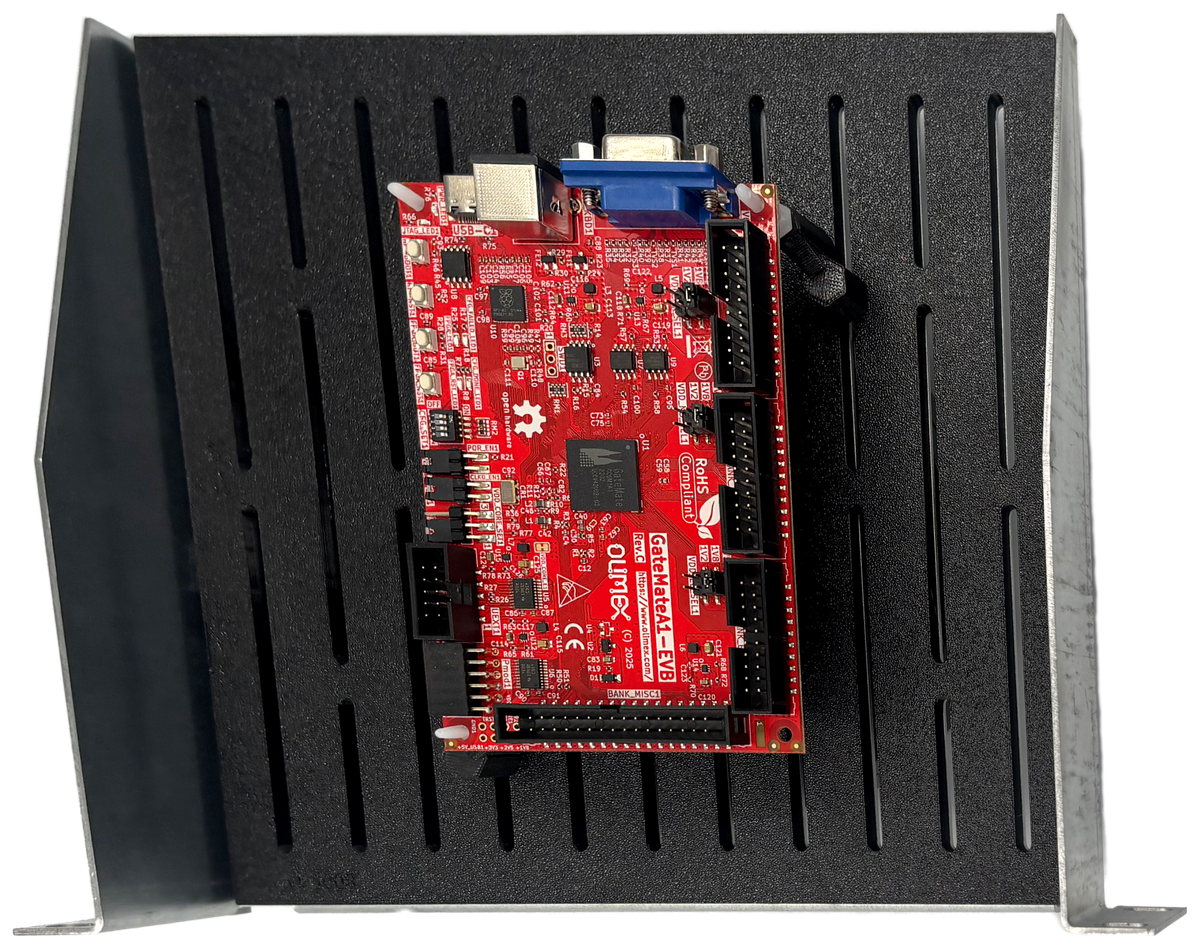

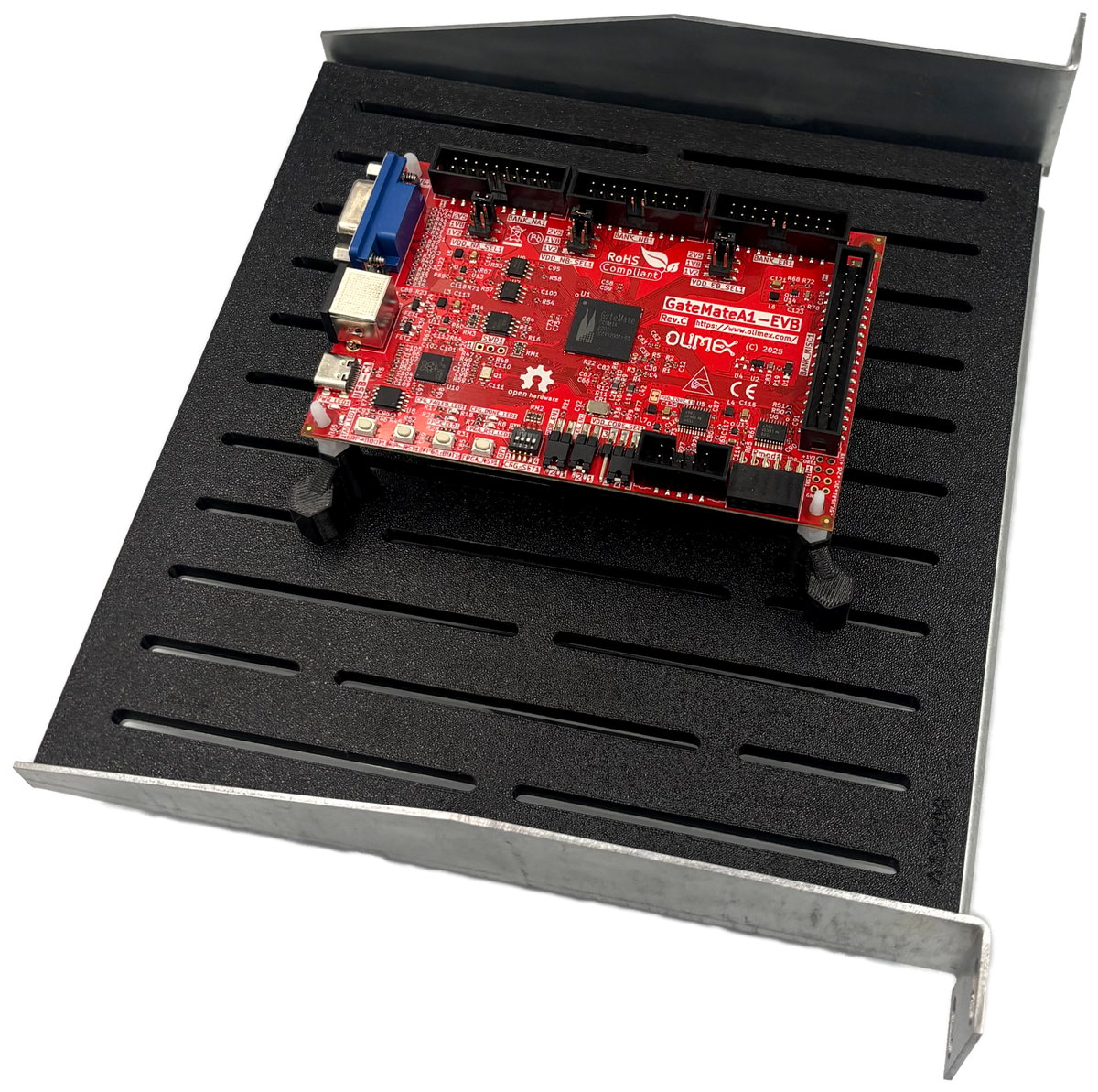

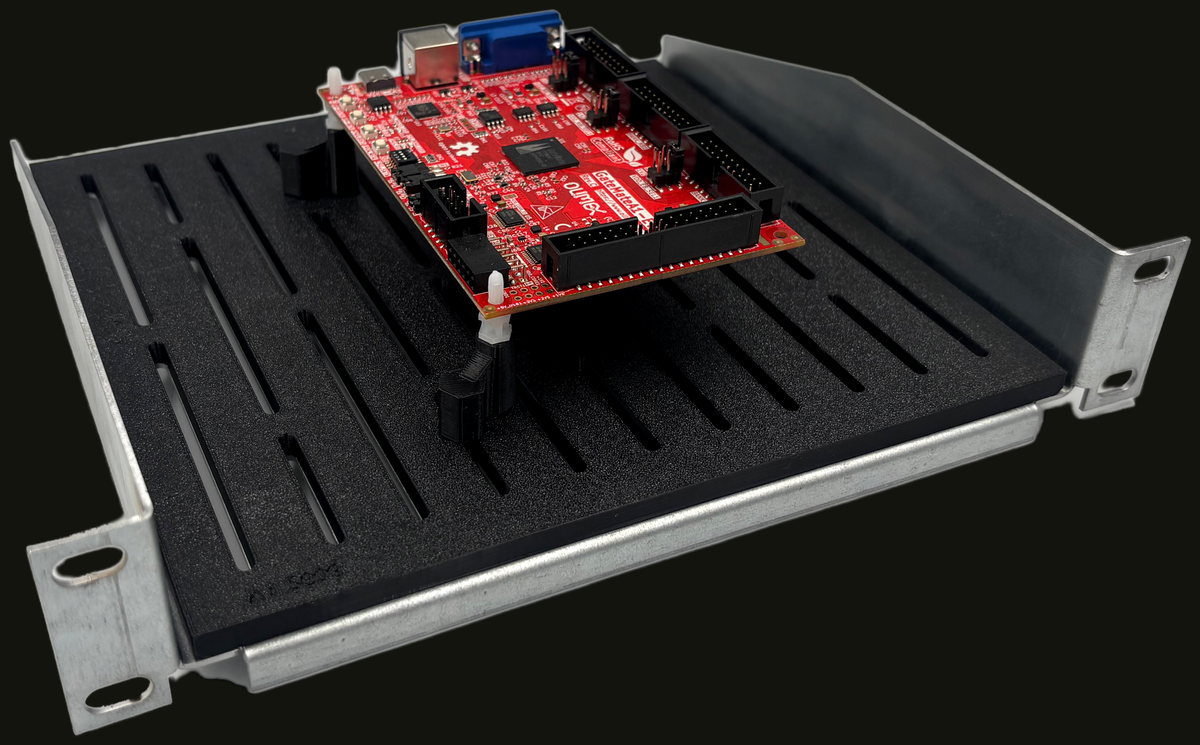

A 10-inch rack shelf for mounting PCBs and other components. Its universal slot raster lets you position any board along the slots, with no redesign per board and no custom brackets. Shipped as a set: plate plus dedicated sheet-metal shelf.

SKURN-RS10
Plate footprint208 × 200 × 6 mm
MaterialPETG ESD
Made inPoland (EU)

Already have questions? Email us directly at hello@ratsnets.com.

How it's built

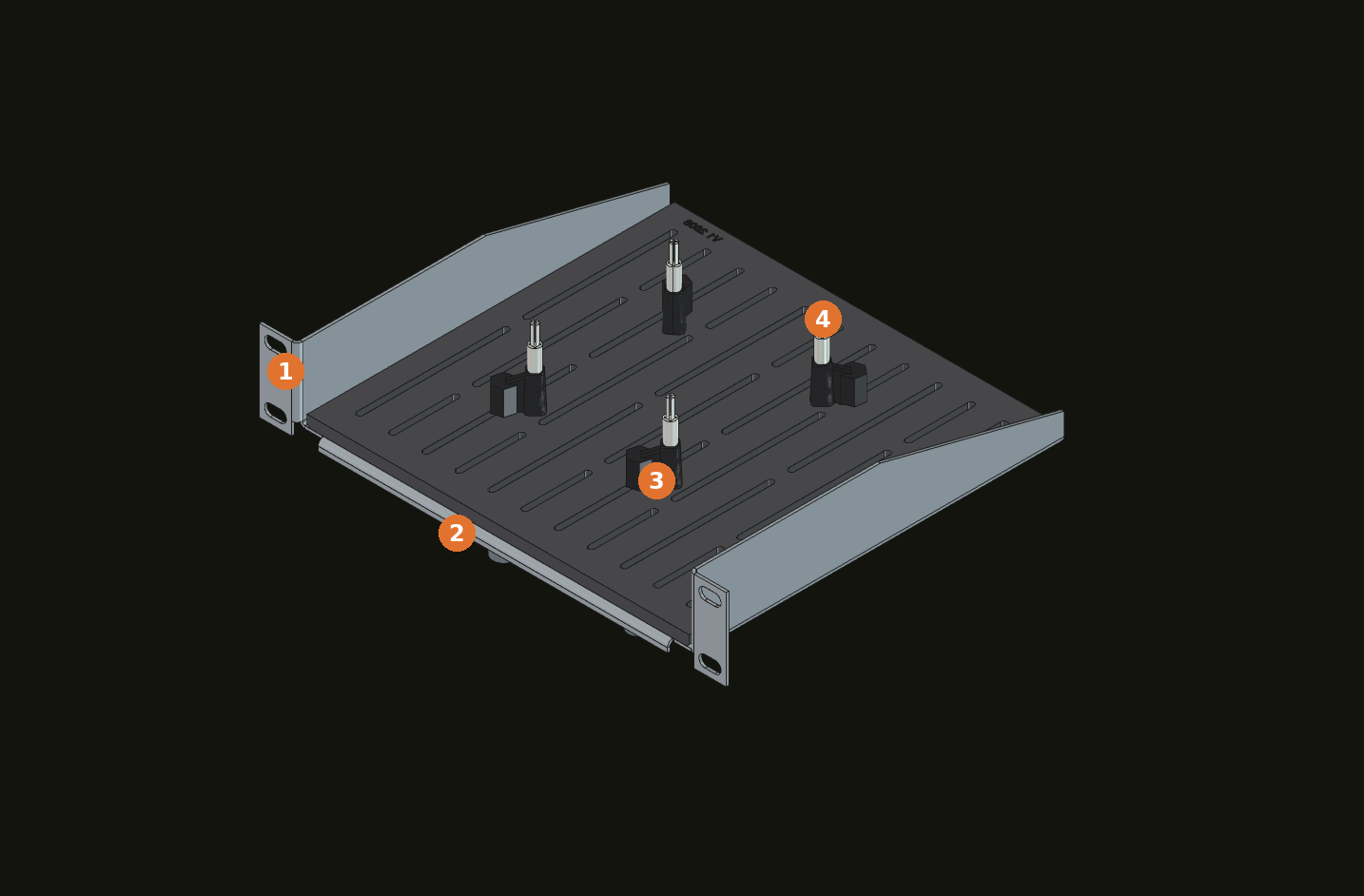

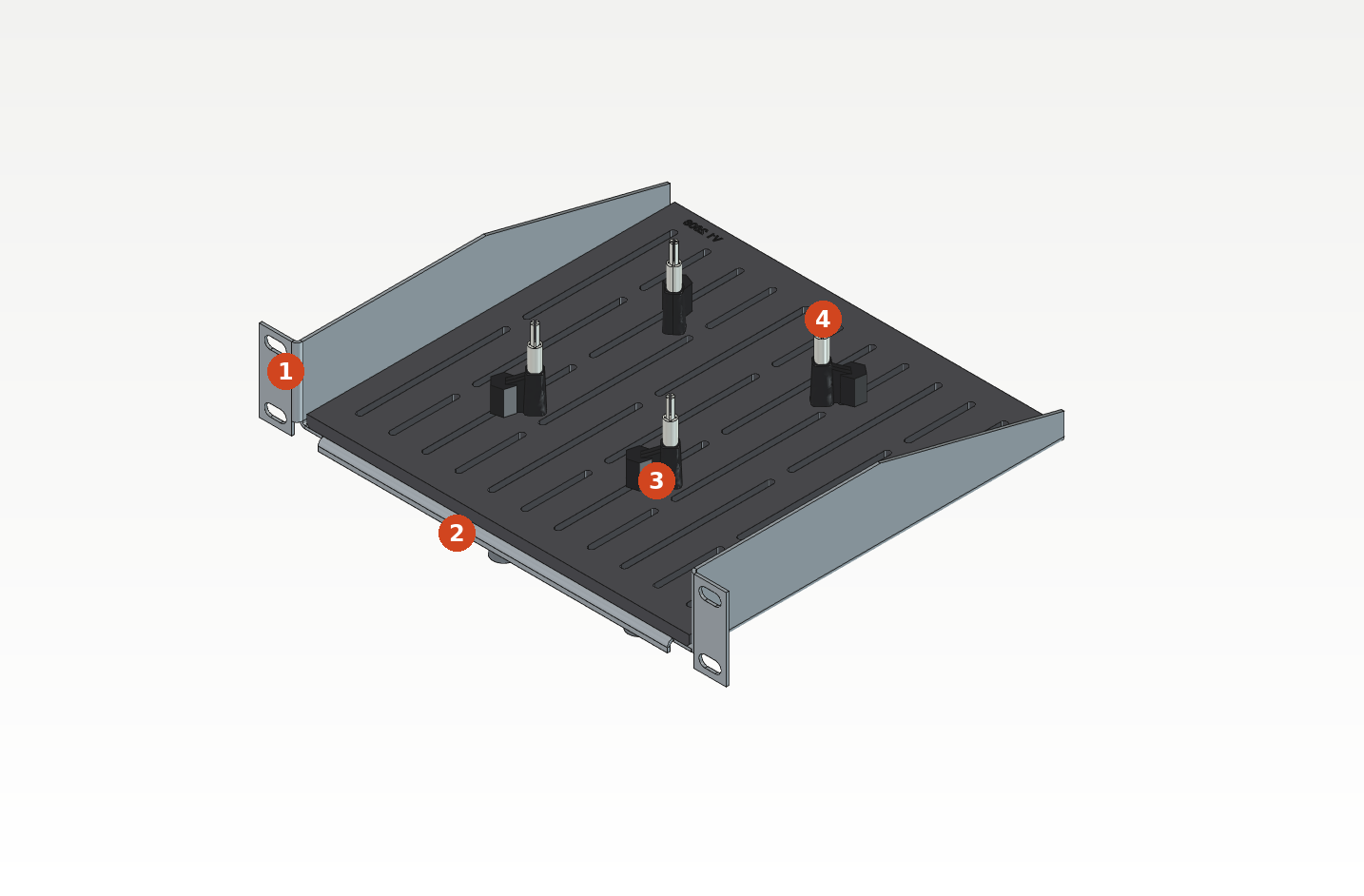

Exploded view of the assembly: sheet-metal shelf, mounting plate, and four posts with heat-set inserts and PCB standoffs — **1 Shelf:** 1.5 mm galvanized sheet steel.
**2 Plate:** 3D-printed in PETG ESD.
**3 Post:** eccentric. Rotating it before clamping fine-tunes its position across the slot, on top of sliding freely along it. Locked from underneath with a screw.
**4 Standoff:** a nylon snap-fit standoff pressed into the board. Pull it out and unscrew it from the post to expose the M3 heat-set insert underneath for a permanent, screw-mounted option.

Dimensioned top view of the working-surface plate: 208 by 200 millimeters — Working surface: 208 × 200 mm of slotted mounting field.

Dimensioned front view of the shelf and plate: 254 millimeters wide, 44.45 millimeters tall — Fits a standard 1U slot: 254 mm wide, 44.45 mm tall.
